Description
Product Summary
DesignCAD™ 3D Max is a user-friendly 2D/3D CAD software designed for beginners, hobbyists, makers, and DIY enthusiasts. This award-winning software provides powerful tools for crafting high-quality designs, simple renders, and animations with ease.
New Features
- Versatile 2D/3D CAD Solution
- Precision 3D Surface Modeling
- 3D Printer Support with STL file Import/Export
- Real-Time OpenGL Rendering
- Animation & Walkthroughs
- BasicCAD Scripting & OLE Automation
Key Features
- ODA version 25.7 support
- SketchUp 2024 compatibility
- Basic shapes
- Points on path tool
- DesignCAD™ updater
- Improved redraw performance
System Requirements
Operating System
- Microsoft Windows 11, Windows 10, Windows 8* 64-bit, Windows 7 (64-bit) – 4 GB RAM, 750 MB free Hard Drive Space.
- Note: DesignCAD™ is designed for desktops or laptops that meet these requirements. Windows RT technology for tablets is not supported.
- Recommendation: Your experience with DesignCAD™ will be greatly enhanced with a newer generation, higher-speed CPU, with 8+ GB RAM
CPU Type
- 1 Gigahertz (GHz) or faster 64-bit (x64) Intel processor.
- Note: ARM processors are not supported.
Other
- Mouse Pointing Device (wheel button recommended).
- Important Notice to Subscription Customers: Subscriptions require an active Internet connection in order to maintain the subscription license.
Key Features

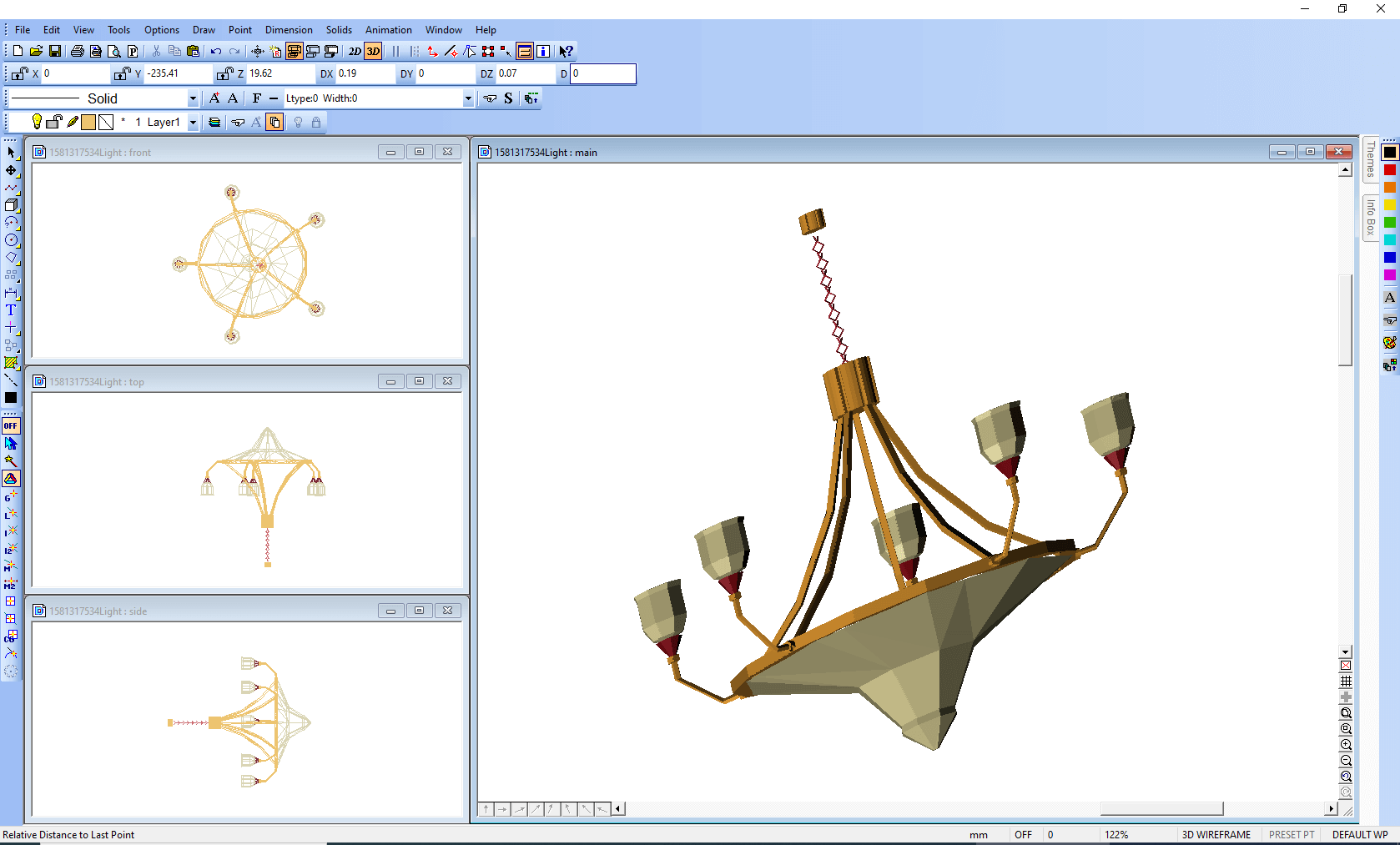

Versatile 2D/3D CAD Solution
Transform 2D objects into detailed 3D models with DesignCAD™ 3D Max. Its extensive design and drafting tools support a wide range of industries, making complex projects more accessible.
Precision 3D Surface Modeling
The Drafting Assistant simplifies the layout process and allows seamless import of existing files for quick modifications. Intuitive design tools help users of all skill levels produce accurate and refined 3D surface models.

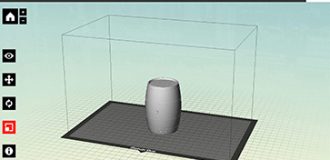

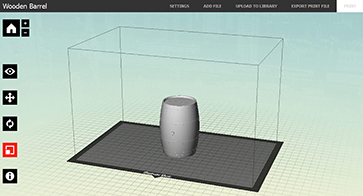

3D Printer Support with STL Support
Export TurboCAD STL files directly to 3D printer control software, making it simple to print and manufacture physical models of your designs.

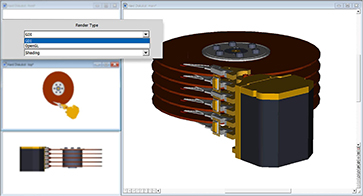

Real-Time OpenGL Rendering
Experience live shaded views with the advanced Open GL rendering engine. Rotate, pan, and draw in Interact with live shaded views using the OpenGL rendering engine. Rotate, pan, and draw in shaded mode while performing solid operations like subtract or copy, all visible in real-time.

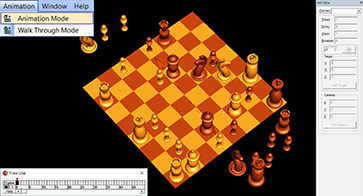

Animation & Walkthroughs
Bring 3D models to life with animation and walkthrough features. Review motion sequences to identify necessary adjustments and ensure the final design meets expectations.

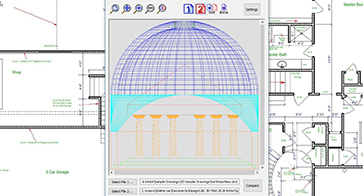

Drawing Compare
Compare two BMP images visually with the Drawing Compare tool, making it easier to track changes and collaborate on projects.
New & Improved Features
ODA Version 25.7 Support
DesignCAD™ supports ODA version 25.7, offering enhanced performance, broader compatibility—including AutoCAD® support from R12 through 2025—and access to advanced features and optimizations. This version improves stability, extends support for industry-standard file formats, and refines APIs for more efficient development processes.

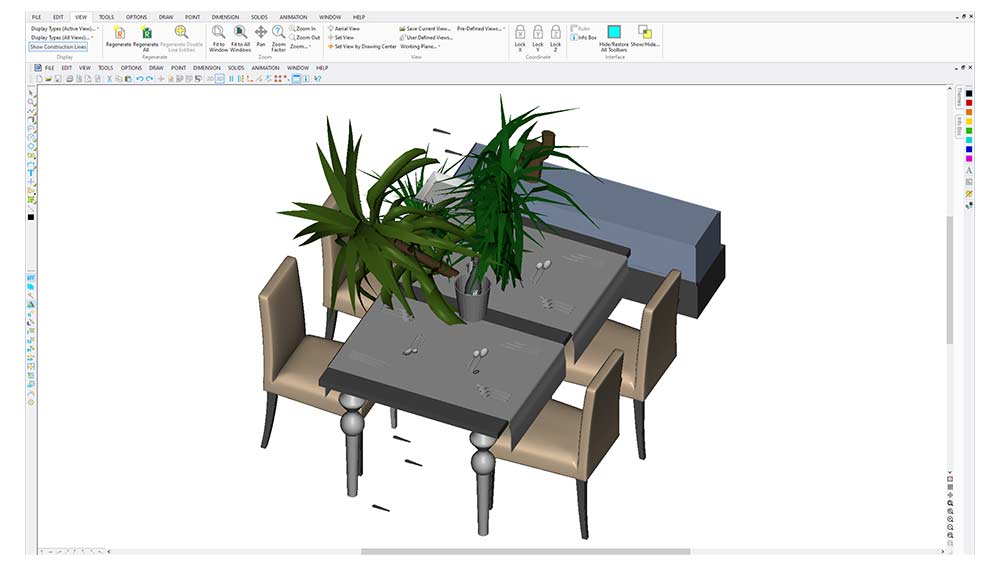

SketchUp 2024 Support
DesignCAD™’s support for SketchUp 2024 enhances compatibility with one of the most widely used 3D modeling formats. This update allows users to import, edit, and export SketchUp files efficiently, ensuring a smooth workflow® between the two software programs.

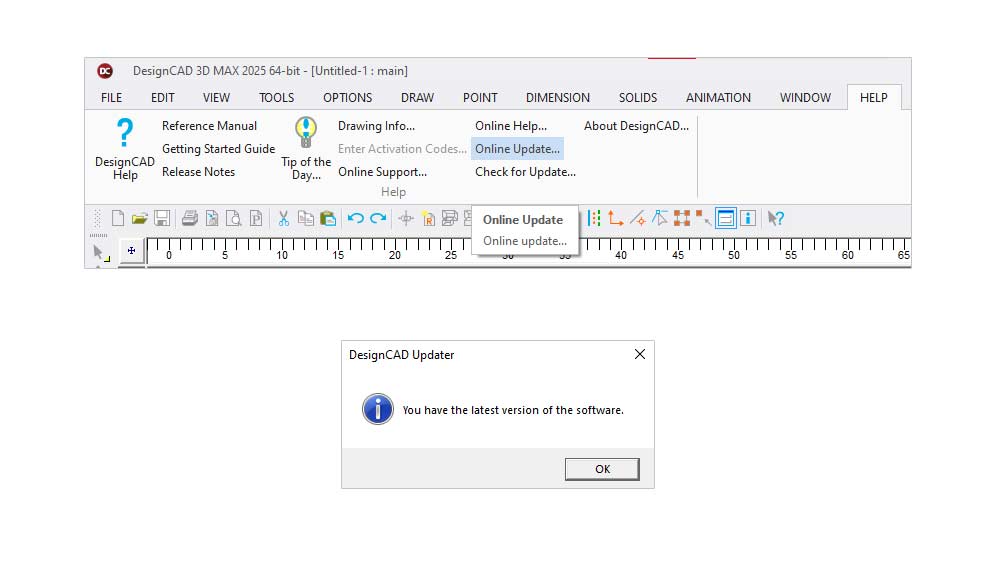

DesignCAD™ Updater
DesignCAD™ introduces a new updater that automatically checks for updates upon startup, notifying users when an update is available. This ensures that users can stay up to date with the latest improvements without requiring manual checks.
Points on Path Tool
DesignCAD™ introduces the Points on Path Tool, allowing users to place points along various paths, including curves, splines, lines, vectors, planes, polygons, arcs, and circles. This tool provides precise control over point distribution, helping users create detailed and accurate designs.
Users can choose between two placement modes: defining a fixed distance between points for uniform spacing or specifying the number of points required on a given path. These options allow for greater flexibility in arranging points, making this tool useful for a variety of design tasks.
Basic Shapes
DesignCAD™ is introducing new basic shape geometries to expand its drawing and modeling capabilities. Users can define precise parameters for each shape, ensuring accurate construction and greater control over dimensions. These fundamental shapes enhance flexibility in design, making geometric drafting more efficient and intuitive.
Improved Redraw Performance
The Draw Polyline function has been optimized to deliver significantly improved performance. Zooming in and out or redrawing the drawing now happens much faster, reducing delays and enhancing responsiveness. This optimization results in approximately 7x faster performance.
Permanent License
Download once and own it forever. Ideally suited for users who need a single license or users who feel they may not need to upgrade each year.
